Measurement Definitions
Definitions, ISO 8559-1 references, and visual diagrams for every body measurement returned by the Bodygram Platform.
This page contains the list and definition of all the body measurements returned by the Bodygram API. For the API field names and units, see Platform measurements in the API reference.
Standardized measurements
Consistently measuring people is challenging. Not only do people come in all shapes and sizes, but there are also many opinions on how specific body parts should be measured. To address this, Bodygram defines its measurements according to well-established international standards such as ISO 7250-1 and ISO 8559-1. This guarantees that Bodygram measurements are relatable, consistent, and comparable across individuals and industries.
Neck & shoulders

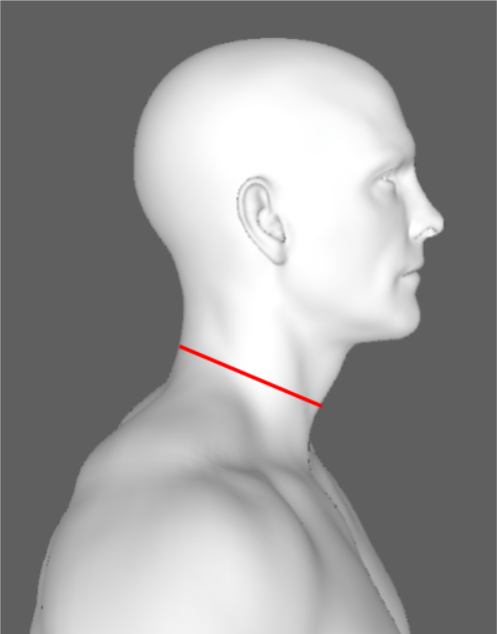

Neck girth
Circumference of the neck at a point just below the bulge at the thyroid cartilage (Adam's apple) and measured perpendicular to the longitudinal axis of the neck.
ISO 8559-1: Neck girth (5.3.2)

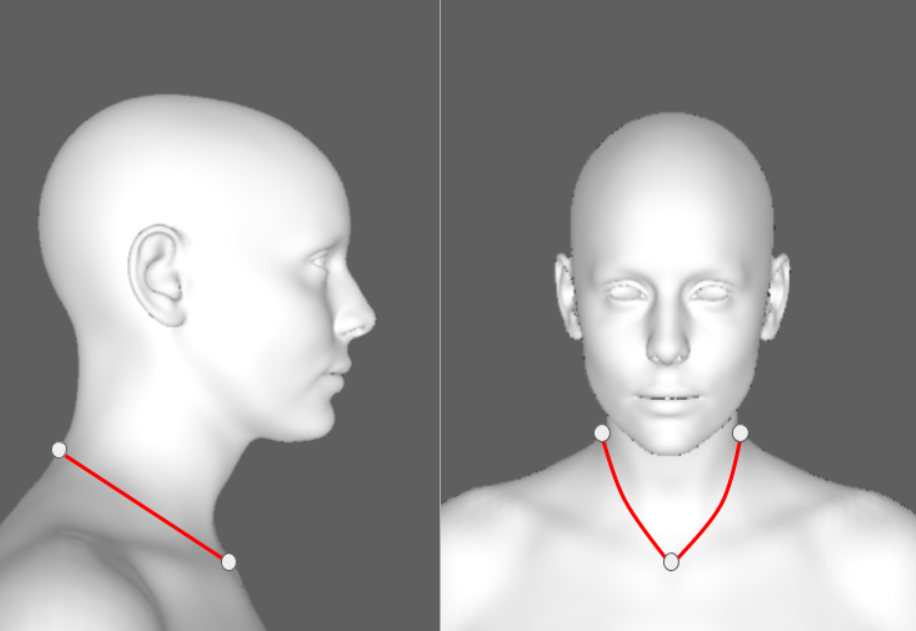

Neck base
Circumference of the base of the neck measured over back neck point (seventh cervical vertebra) and the front neck point (crossing point of the line connecting medial superior borders of the left and right clavicles and front median line).
ISO 8559-1: Neck base girth (5.3.3)

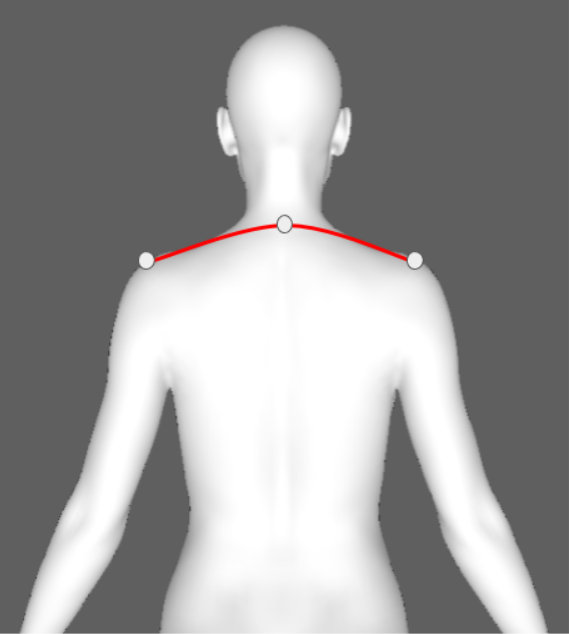

Shoulder width
Distance from the left shoulder point, through the back neck point (the seventh cervical vertebra) to the right shoulder point.
ISO 8559-1: Across back shoulder width through the back neck point (5.4.3)

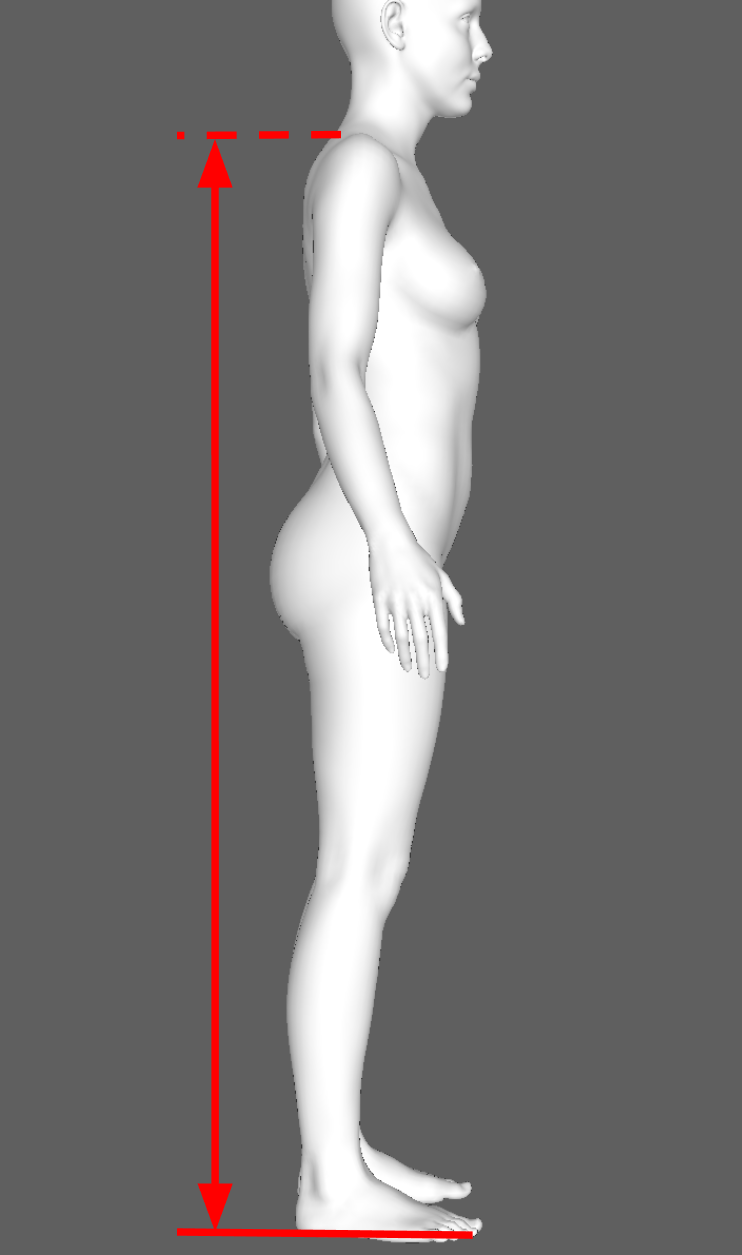

Back neck height
Vertical distance from back neck point to the ground.
ISO 8559-1: Back neck height (5.1.5)
Arms

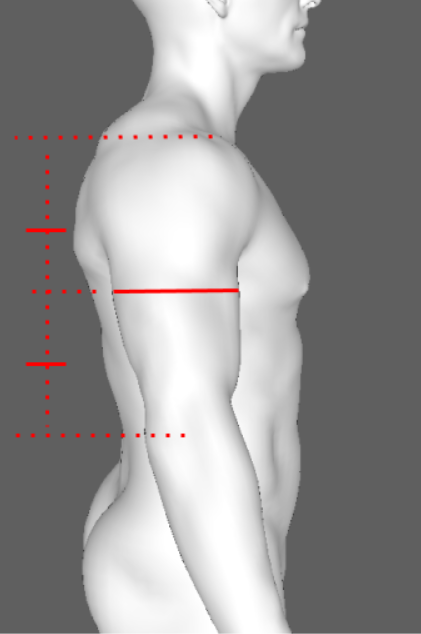

Upper arm
Circumference of the upper arm measured midway between the shoulder point (most lateral point of the lateral edge of the spine) and elbow point (most prominent point of the olecranon of ulna), right side.
ISO 8559-1: Upper-arm girth (5.3.16)

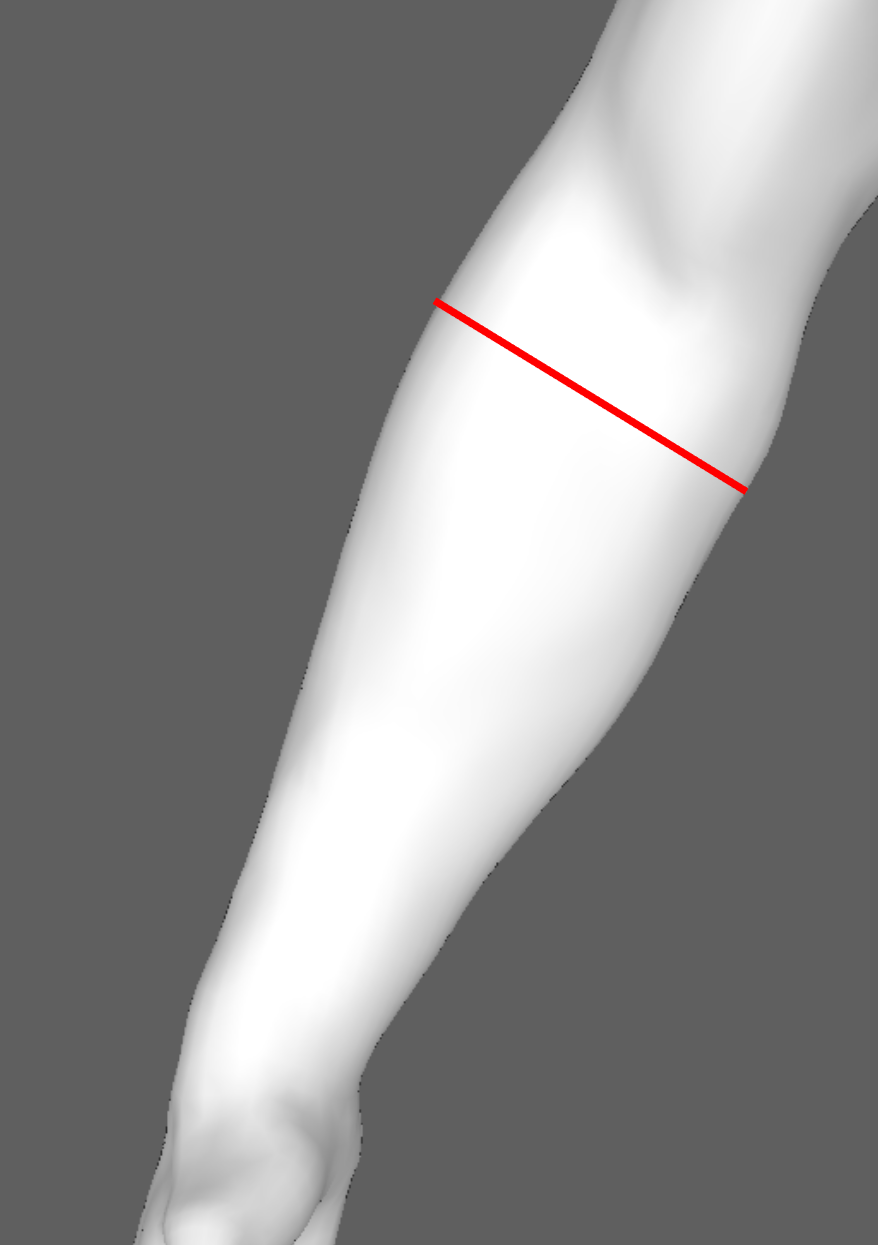

Forearm
Circumference of the widest part of the forearm, right side.
ISO 8559-1: N/A

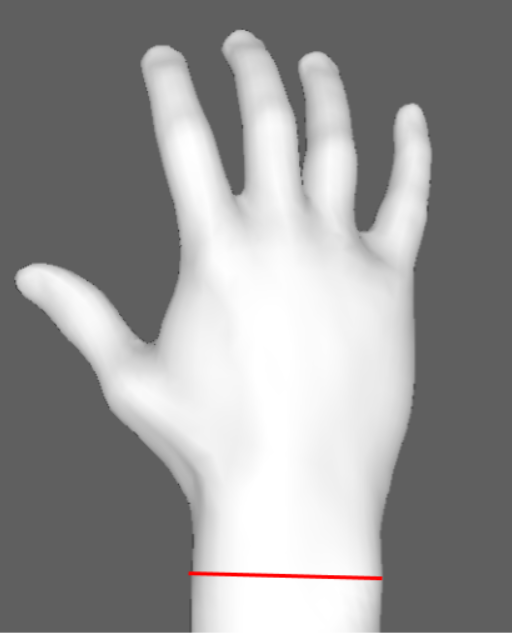

Wrist
Circumference of the wrist at the level of wrist point (most prominent point of the protruding bone at the little finger side of the wrist), right side.
ISO 8559-1: Wrist girth (5.3.19)

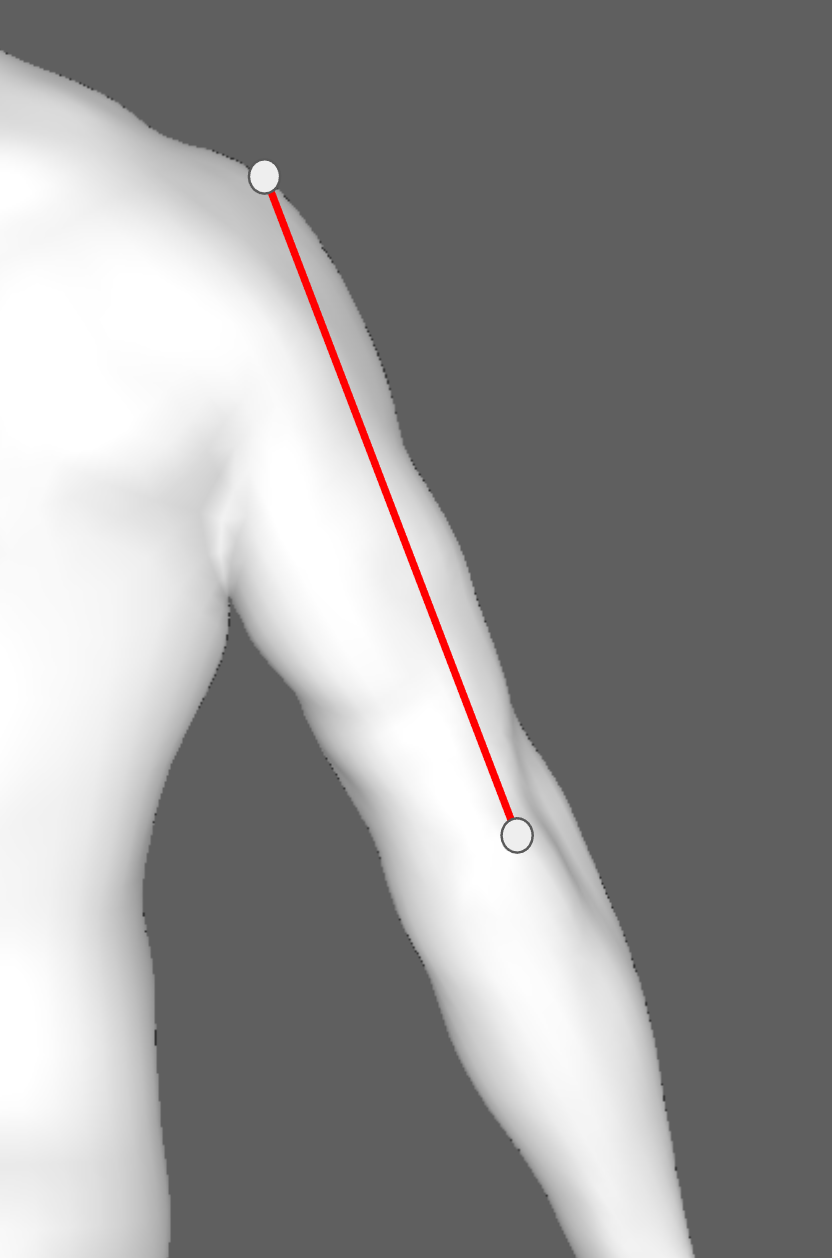

Shoulder to elbow
Distance from the shoulder point to the elbow point, right side.
ISO 8559-1: Upper arm length, shoulder to elbow, elbow bent (5.1.14)

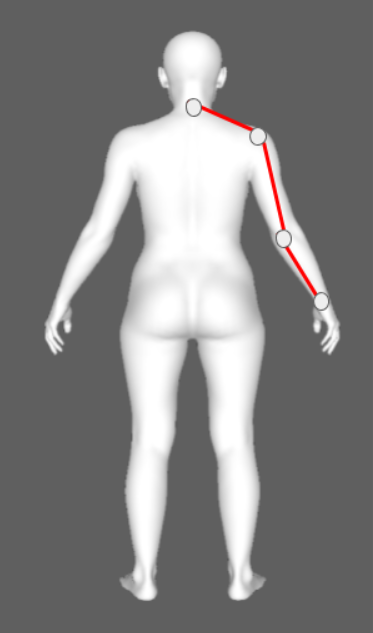

Sleeve length
Distance across the shoulder and down the arm from the back neck point (seventh cervical vertebra) over the shoulder point and the elbow point to the wrist point, right side.
ISO 8559-1: Back neck point to wrist length (5.4.17)
Outer arm length
Distance from shoulder point (most lateral point of the lateral edge of the spine) to wrist point, right side.
ISO 8559-1: Outer arm length (5.7.8)
Torso

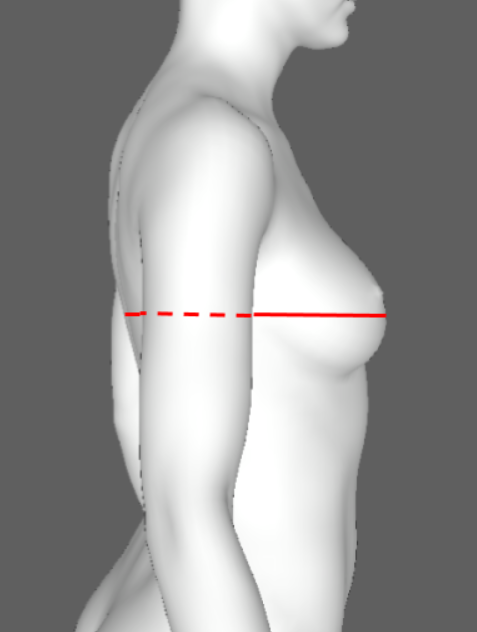

Bust
Horizontal circumference measured at bust point level (most anterior point of the bust when wearing bra).
ISO 8559-1: Bust girth (5.3.4)

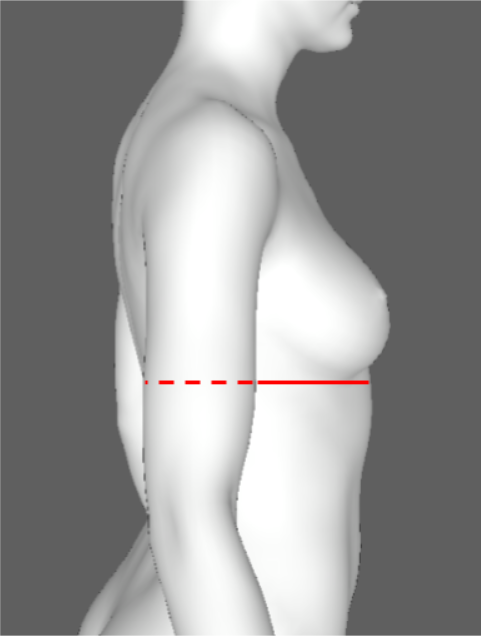

Under bust
Horizontal circumference of the body at the under bust level (directly below breast when wearing a bra).
ISO 8559-1: Under bust girth (5.3.8)

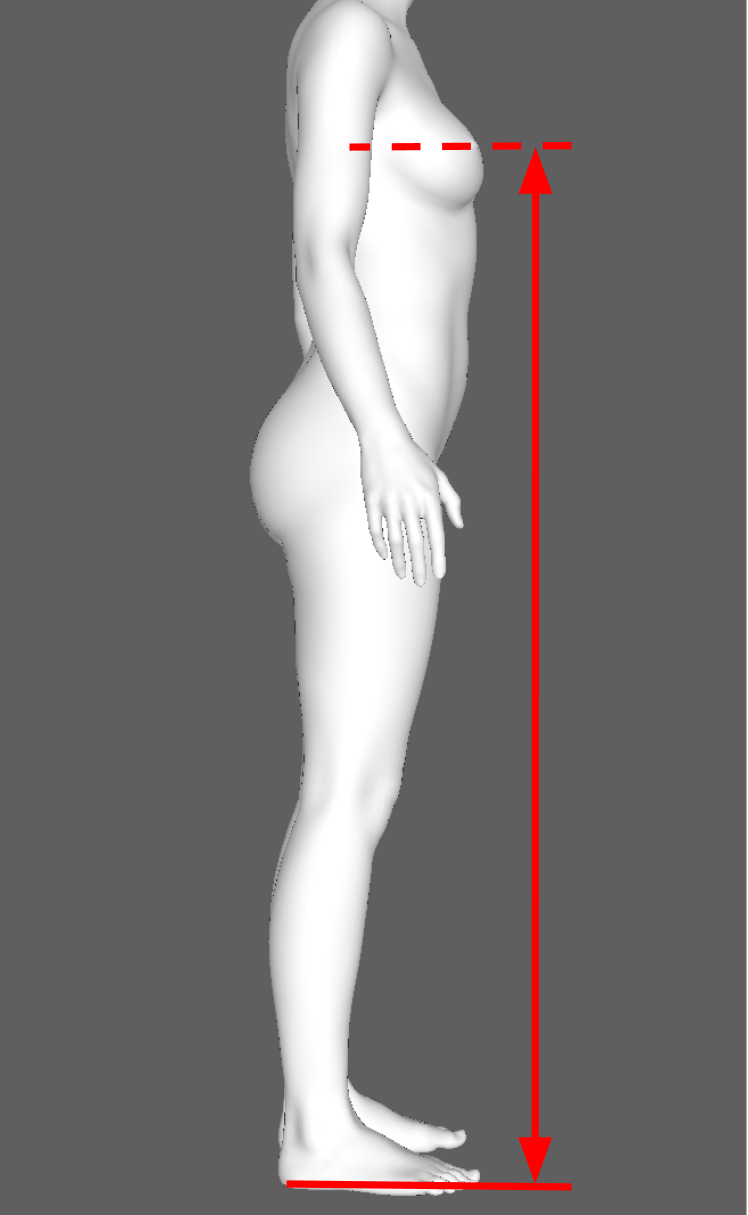

Bust height
Vertical distance from the bust point to the ground.
ISO 8559-1: Bust height (5.1.7)

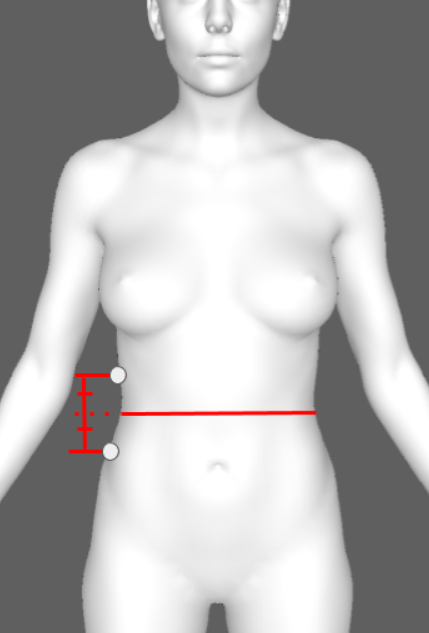

Waist
Horizontal circumference of the body measured at the waist level (midway between the lowest rib point and the highest point of the hip bone at the side of the body).
ISO 8559-1: Waist girth (5.3.10)

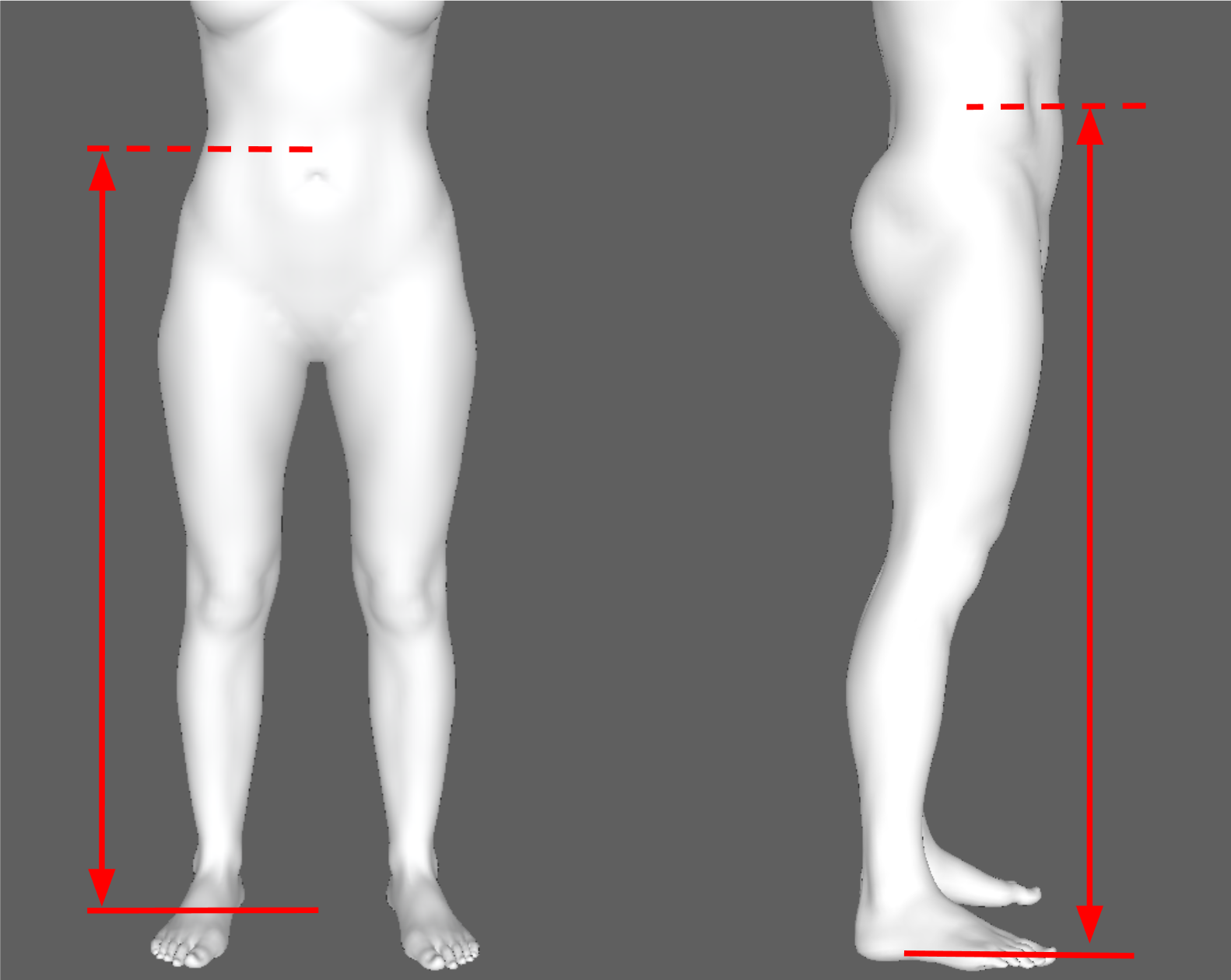

Waist height
Vertical distance from the waist level to the ground.
ISO 8559-1: Waist height (5.1.10)

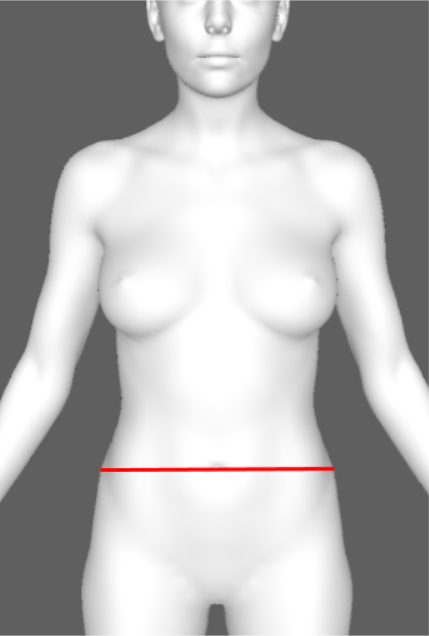

Belly waist
Horizontal circumference of the body measured at the navel.
ISO 8559-1: N/A

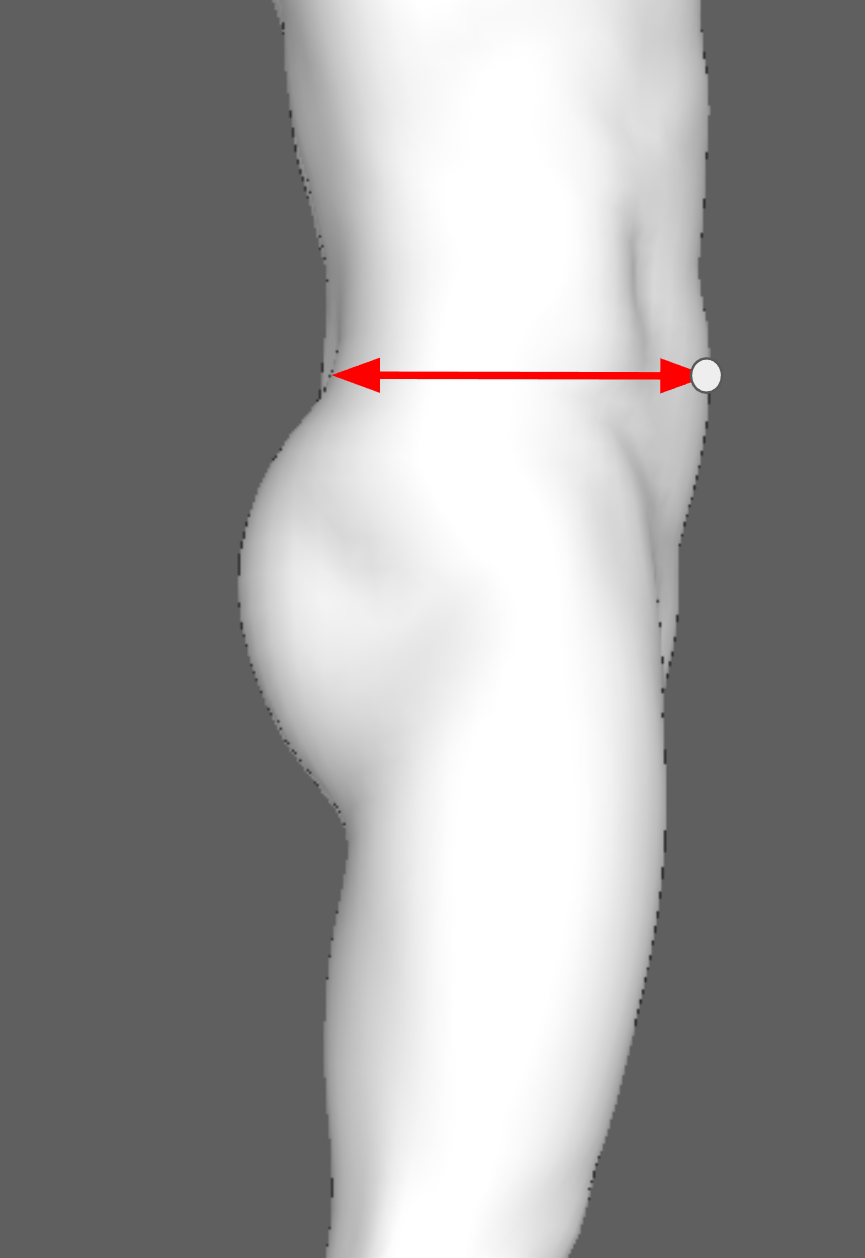

Belly waist depth
Depth of the belly waist measured from a facing angle.
ISO 8559-1: N/A

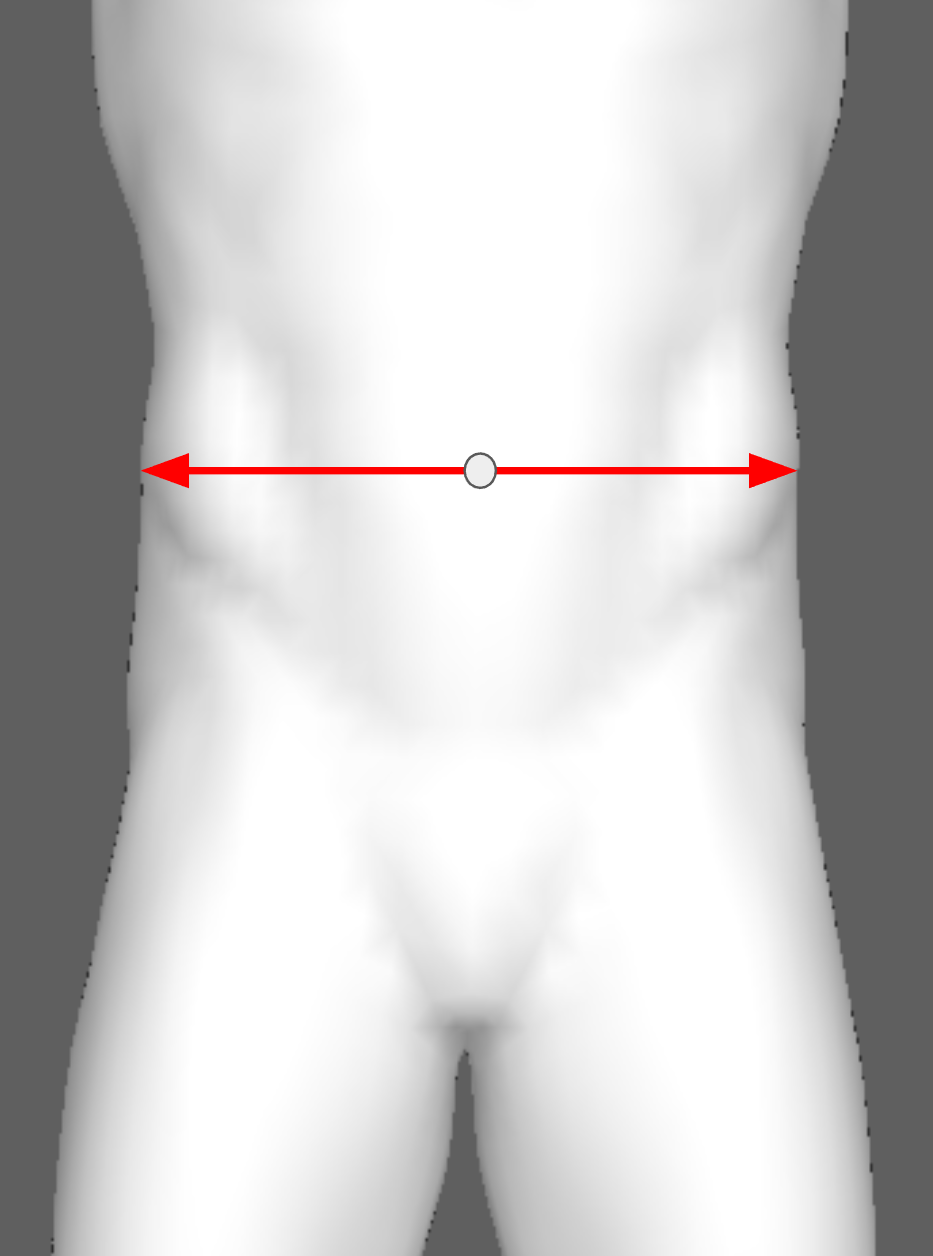

Belly waist width
Width of the belly waist measured from a facing angle.
ISO 8559-1: N/A
Belly waist height
Vertical distance from the belly waist level to the ground.
ISO 8559-1: N/A

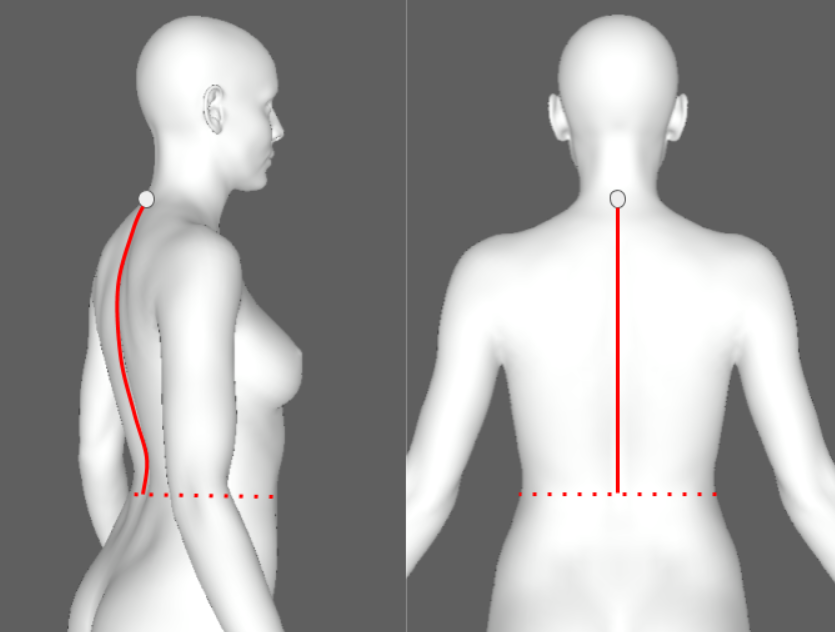

Back (to waist) length
Distance from back neck point (seventh cervical vertebra) to waist level (midway between the lowest rib point and the highest point of the hip bone at the side of the body).
ISO 8559-1: Back neck point to waist (5.4.5)

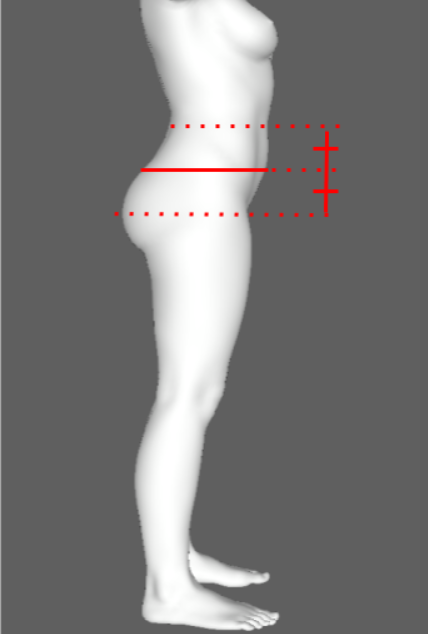

Top hip
Horizontal circumference of the body measured at the top hip level (midway between the waist level and hip level).
ISO 8559-1: Top hip girth (5.3.12)

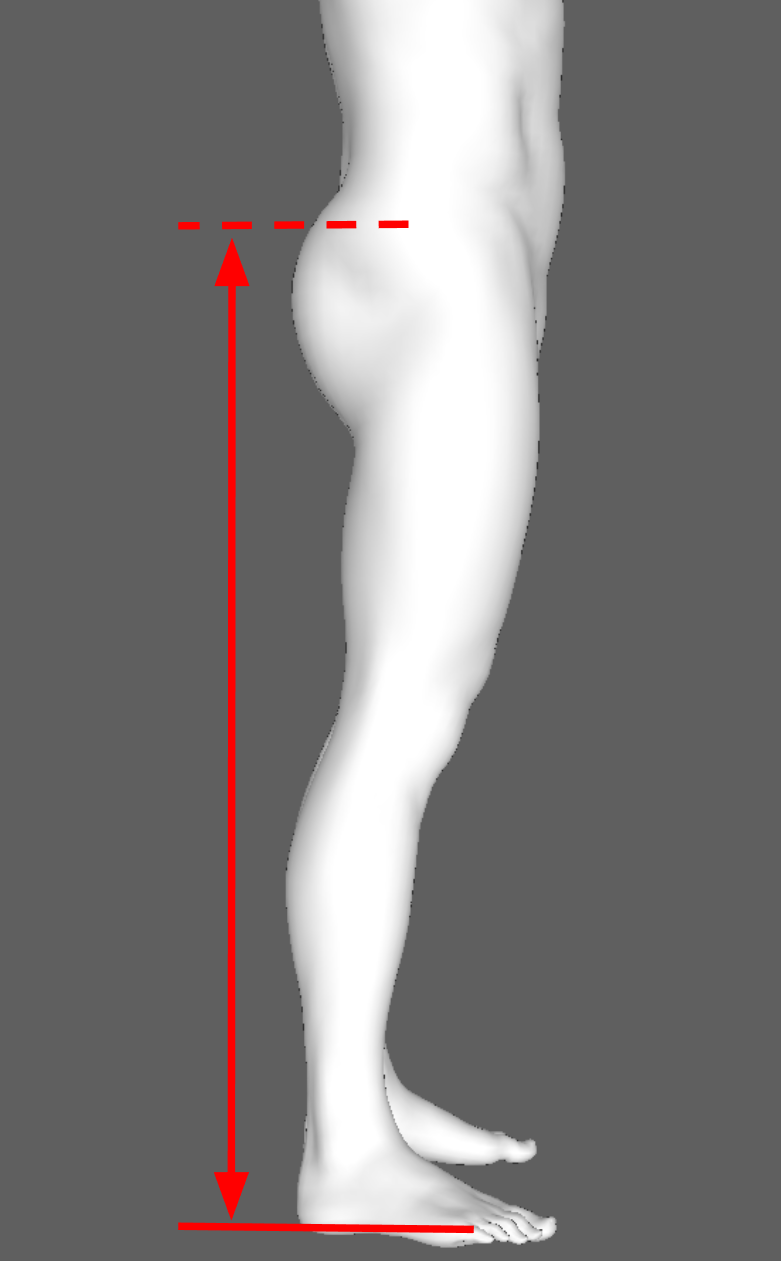

Top hip height
Vertical distance from the top hip level to the ground.
ISO 8559-1: Top hip height (5.1.12)

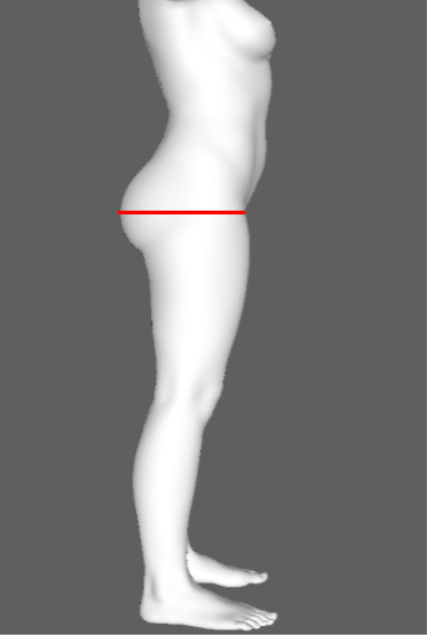

Hip
Horizontal circumference of the body measured at the hip level (around the buttocks).
ISO 8559-1: Hip girth (5.3.13)

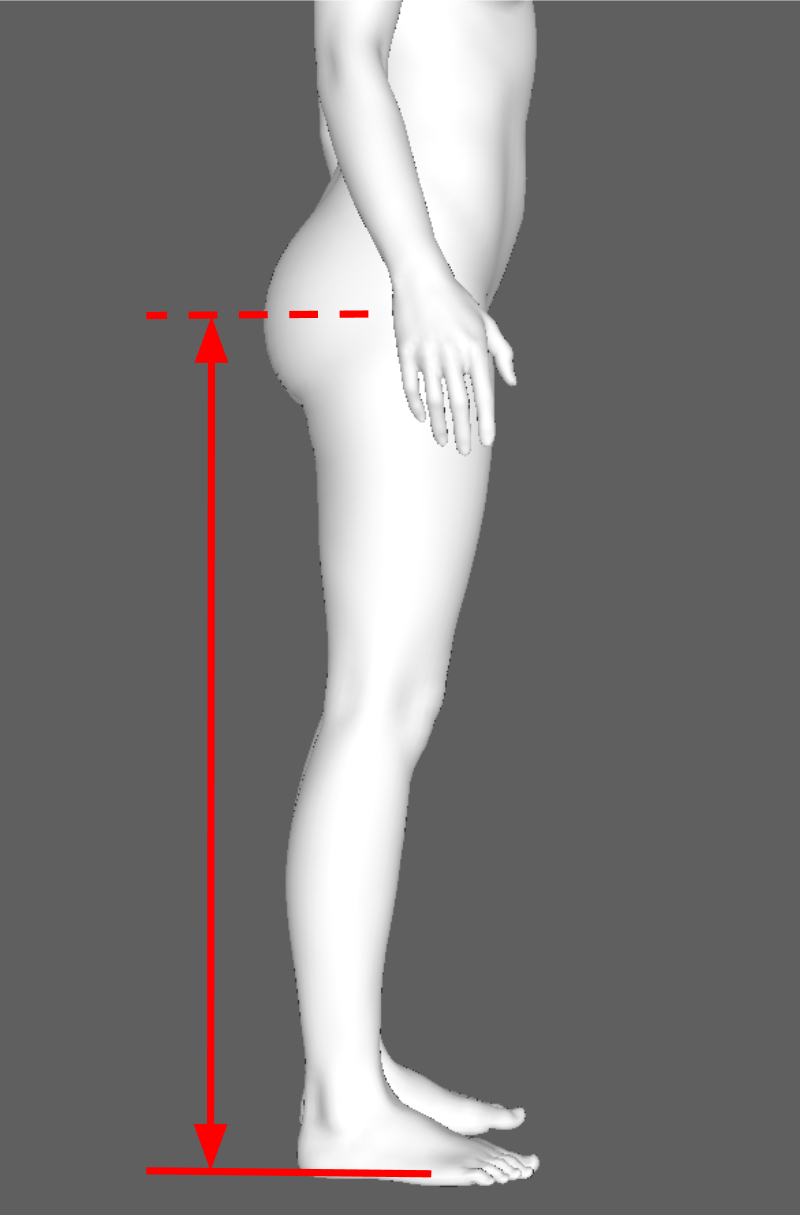

Hip height
Vertical distance from the hip level to the ground.
ISO 8559-1: Hip height (5.1.13)
Legs

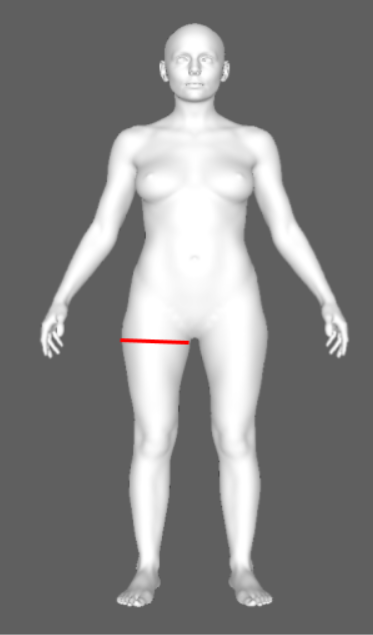

Thigh
Horizontal circumference of the widest part of the thigh below the gluteal fold, right side.
ISO 8559-1: Thigh girth (5.3.20)

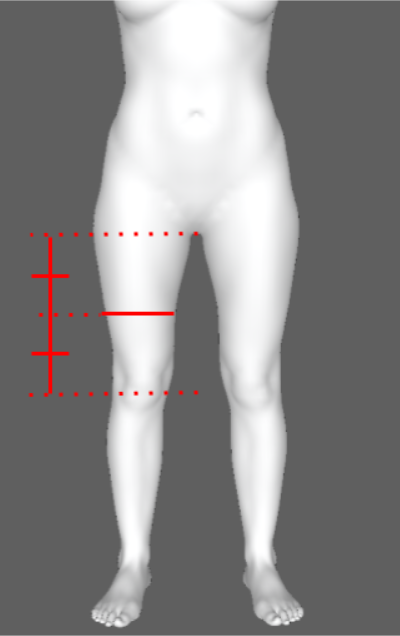

Mid-thigh
Horizontal circumference of the thigh measured midway between the inside leg level (highest visible point at the junction between the right and left thighs observed from the back of the subject) and the center point of the kneecap (center of patella when the thigh muscles are relaxed), right side.
ISO 8559-1: Mid-thigh girth (5.3.21)

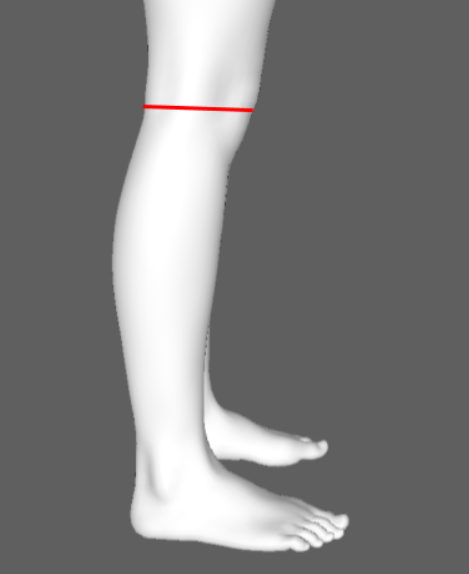

Knee
Horizontal circumference of the knee at the level of the center point of kneecap (center of patella when the thigh muscles are relaxed), right side.
ISO 8559-1: Knee girth (5.3.22)
Knee height
Vertical distance from the center of the kneecap to the ground, right side.
ISO 8559-1: Knee height (5.1.16)

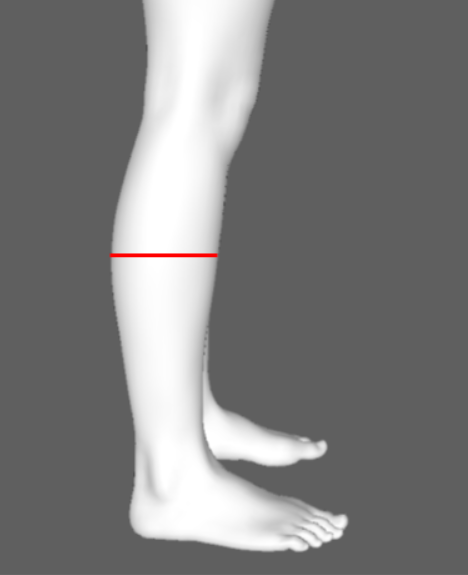

Calf
Horizontal circumference of the widest part of the calf, right side.
ISO 8559-1: Calf girth (5.3.24)

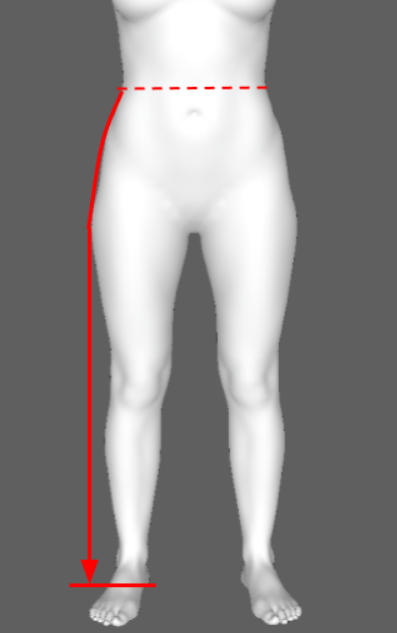

Outside leg length
Distance down the side of the body from the waist level (midway between the lowest rib point and the highest point of the hip bone at the side of the body) following the contour to the hip level (greatest projection of buttock), then vertically to the ground, right side.
ISO 8559-1: Outside leg length (5.4.22)

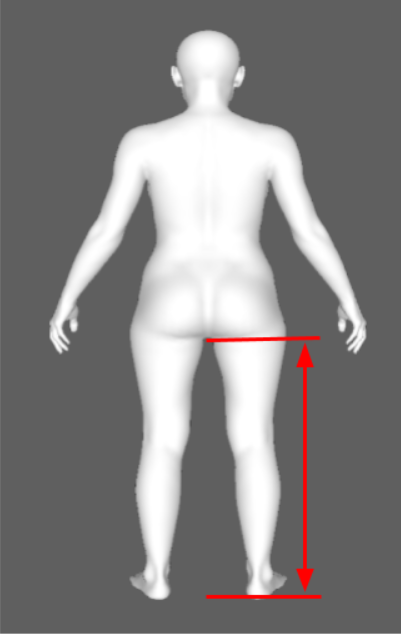

Inside leg height
Vertical distance from the inside leg level (highest visible point at the junction between the right and left thighs observed from the back of subject) to the ground.
ISO 8559-1: Inside leg height (5.1.15)

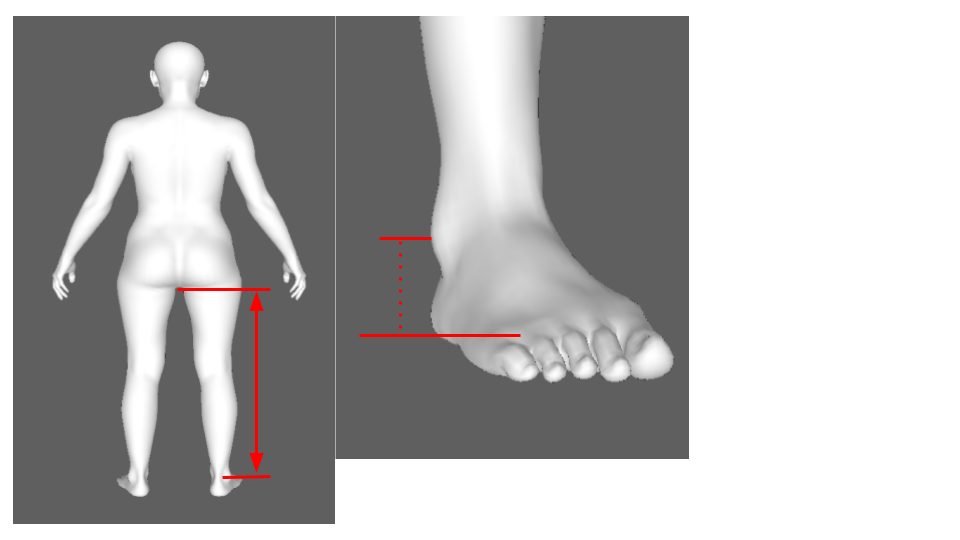

Inside leg length
Vertical distance between the inside leg level (highest visible point at the junction between the right and left thighs observed from the back of the subject) and outer ankle point, right side.
ISO 8559-1: Inside leg length (5.7.6)

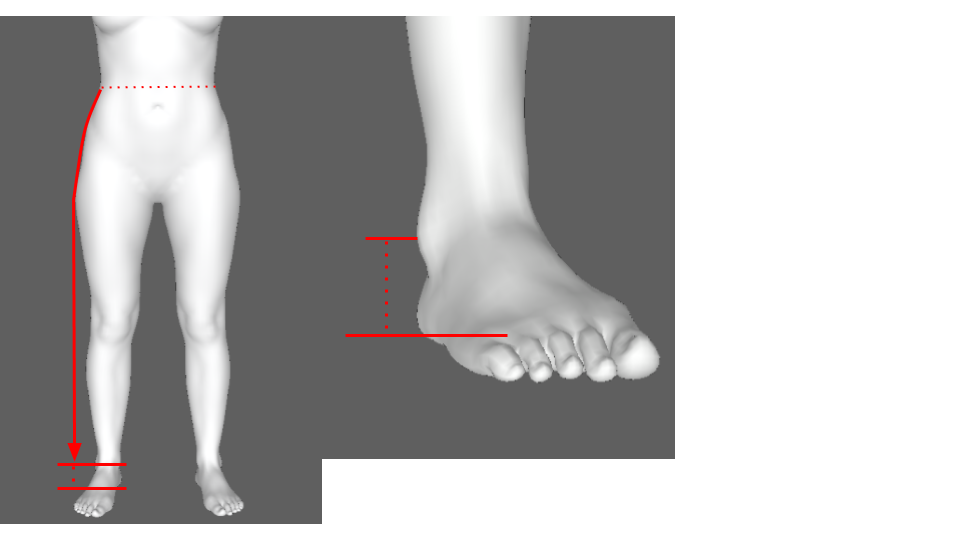

Outseam
Distance down the side of the body from the waist level (midway between the lowest rib point and the highest point of the hip bone at the side of the body) following the contour to the hip level, then vertically to outer ankle point, right side.
ISO 8559-1: N/A

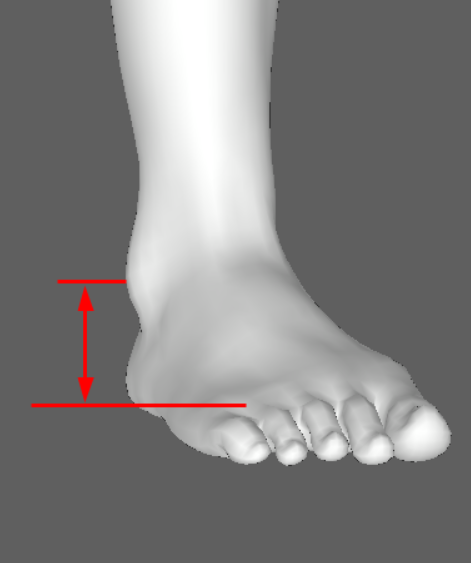

Outer ankle height
Vertical distance from the outer ankle point (most lateral point of the outer ankle bone) to the ground, right side.
ISO 8559-1: Outer ankle height (5.1.17)
Full body

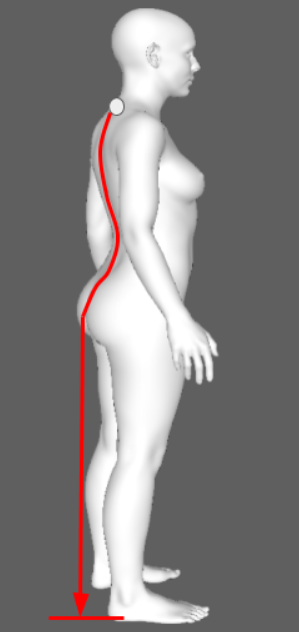

Full body length
Distance from back neck point (seventh cervical vertebra) following the contour of the spinal column to the hip level, then vertically to the ground.
ISO 8559-1: Back neck point to ground, contoured (5.4.23)
